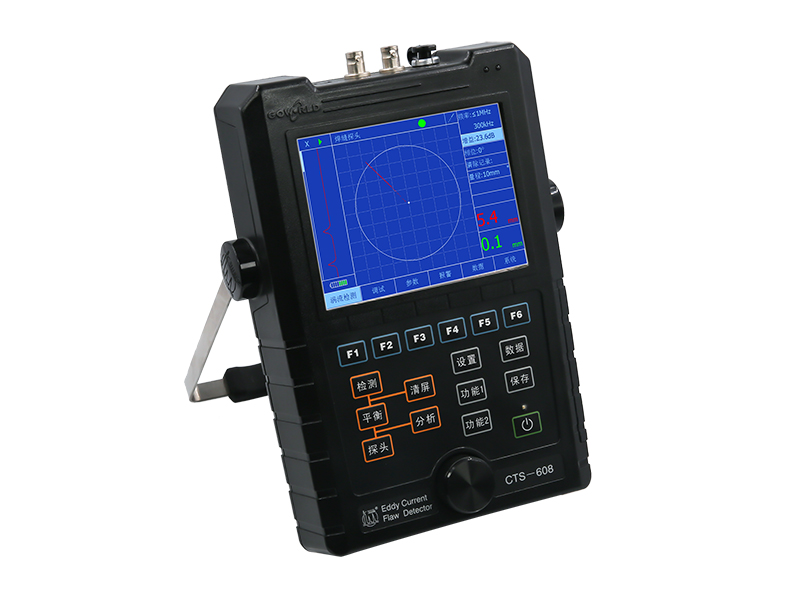

The CTS-608 Rail Eddy Current Detector is a professional eddy current testing instrument specially designed for rail weld. It integrates eddy-current, digital electronics and microcomputer techniques, with reliable performance and high stability.
The CTS-608 Rail Eddy Current Detector is a professional eddy current testing instrument specially designed for rail weld. It integrates eddy-current, digital electronics and microcomputer techniques, with reliable performance and high stability, and is good at detecting surface defects of metal objects. The instrument is easy to operate, ultra-light and portable, equipped with special detection probes to achieve efficient and rapid detection of rail weld surface cracks.
Impedance and time base are displayed on the same screen.
Three display modes: line mode, blanking mode and point mode.
Fast digital balance.
Equipped with self-developed special detection probes for rails, including weld probes which can be used for surface crack detection on rail tread, welds and weld boundaries, rail bottom probes which can be used for crack detection on rail bottom and rail corner, and turnout probes which can be used for surface crack detection on turnout wing rail, switch rail and other parts.
The special probe has high signal-to-noise ratio and low lift-off interference, and has the national technical patent certificate.
Equipped with a special scanning device suitable for rapid detection of cracks in all parts of the turnout.
Rail real-time defect depth measurement alarm function, depth measurement up to 10 mm.
Test parameter saving and calling.
Detection process continuously storing and playing back.
Real-time analysis and off-line analysis of detection graphics.
Two real-time depth alarm frames, with Buzzer / LED alarm.
With the function of maximum depth value memory and real-time depth value display.
Filter: HPF & LPF.
Communication: USB communication port (can be connected for data transfer and software upgrade).
Built-in power supply: large battery capacity in service of 6 hours without cut-off.
External power supply: DC 12V power adapter.
| Working Frequency | 50Hz～10MHz |
| Driving Voltage | 8 levels adjustable |
| Manual Phase Adjustment | 0~359°（step1°） |
| Gain | 0～80dB（step 0.1dB） |
| Sampling Frequency | 40MHz，12-bit data acquisition |
| Display | 5.7' 640×480 colorful TFT screen, a fine display of the images to detail |
| Gain Ratio | 0.1～10 |
| T-factor | 1～50 |
| V-factor | 1～100 |
| Parameter storage | 100 groups |
| Graphic storage | 100 groups |
| Continuous storage time | 40 minutes |
| Dimensions | 166mm×246mm×47mm |
| Weight | ≤1.5kg（with battery） |
