Phased Array Probes

Each element of phased array probes can be independently controlled by the electric signals. In connection with the PA equipment, it can transmit ultrasonic beams from different angles for dynamic focusing and real-time scanning.

Please add WeChat official account for consultation

Product Intro

Feature

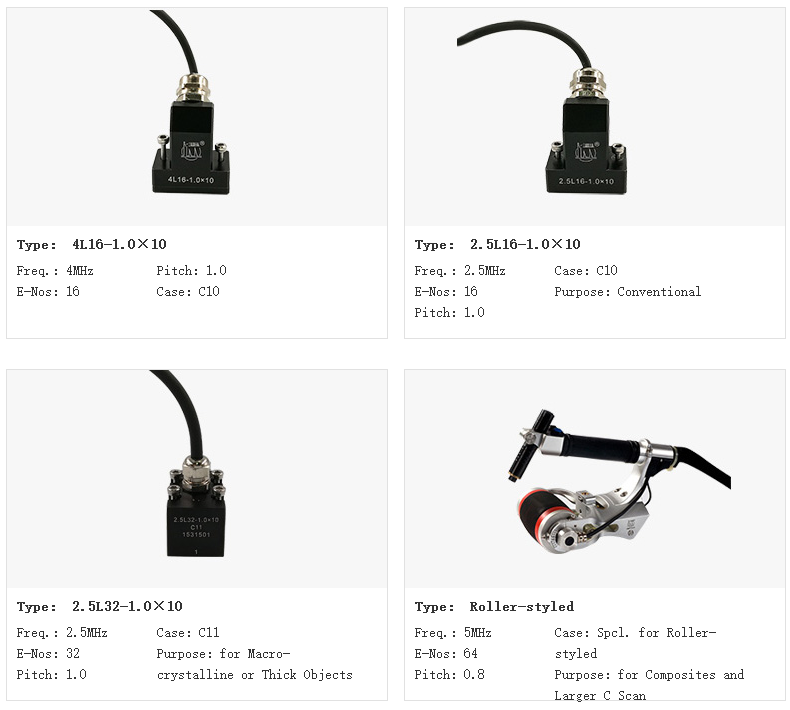

1. Sample Showcase

PA probe.png

8th Element Test Sheet (Sample)

II. Probe Wedge

For Different Models and Angles

Model

PA Probes

I Phased Array Probes

1.Linear Array Series

Model	Freq. (MHz)	E-Nos	Pitch (mm)	A.APTR (mm)	Elev. (mm)	Desc/PUPO/Obj
5L16-C1	5.0	16	0.31	5	5	S-Size, for spcl. Obj
7.5L8-C1	7.5	8	0.5	4	5	S-Size, for spcl. Obj
10L16-C1	10	16	0.31	5	5	S-Size, for spcl. Obj
2L8-C2	2.0	8	1.0	8	9	Conventional
4L16-C2	4.0	16	0.5	8	10	Conventional
5L16-C2	5.0	16	0.6	9.6	10	Conventional
7.5L16-C2	7.5	16	0.5	8	10	Conventional
10L32-C2	10	32	0.31	10	10	S-Size, for spcl. Obj
2.25L16-C3	2.25	16	1.0	16	10	Conventional
2.5L16-C3	2.5	16	1.0	16	10	Conventional
2.5L32-C3	2.5	32	0.5	16	10	Conventional
4L16-C3	4.0	16	1.0	16	10	Conventional
5L16-C3	5.0	16	1.0	16	10	Conventional
5L32-C3	5.0	32	0.5	16	10	Conventional
7.5L32-C3	7.5	32	0.5	16	10	Conventional
10L16-C3	10	16	1.0	16	10	Conventional
10L32-C3	10	32	0.5	16	10	Conventional
2.5L32-C4	2.5	32	1.0	32	10	Macro-CRY, Thick Obj
3.5L32-C4	3.5	32	1.0	32	10	Macro-CRY, Thick Obj
5L32-C4	5.0	32	1.0	32	10	Conventional，Thick Obj
5L64-C4	5.0	64	0.6	32	10	COMP, Larger Scan
7.5L32-C4	7.5	32	1.0	32	10	Conventional
10L32-C4	10	32	1.0	32	10	Conventional
10L64-C4	10	64	0.5	32	10	COMP, Larger Scan
2.25L64-C5	2.25	64	0.75	48	10	COMP, Larger Scan
3.5L64-C5	3.5	64	1.0	64	10	COMP, Larger Scan
3.5L128-C5	3.5	128	0.5	64	10	COMP, Larger Scan
5L64-C5	5.0	64	1.0	64	10	COMP, Larger Scan
7.5L64-C5	7.5	64	1.0	64	10	COMP, Larger Scan
10L128-C5	10	128	0.5	64	10	COMP, Larger Scan
2.25L128-C6	2.25	128	0.75	96	10	COMP, Larger Scan
5L128-C6	5.0	128	0.75	96	10	COMP, Larger Scan
3.5L128-C7	3.5	128	1.0	128	10	COMP, Larger Scan
2L16-C8	2.0	16	1.8	28.8	20	Macro-CRY, Thick Obj
2.25L16-C8	2.25	16	2.0	32	20	Macro-CRY, Thick Obj
2.25L32-C8	2.25	32	0.75	24	24	Conventional, Thick Obj
3.5L16-C8	3.5	16	1.6	25.6	16	Conventional
1.5L16-C9	1.5	16	2.8	44.8	26	Macro-CRY, Thick Obj

2.Camber Array Series

Model	Freq. (MHz)	E-Nos	Pitch (mm)	Elev. (mm)	R (mm)	ANGL.RNG (°)	Desc/PUP
3.5C16-R1	3.5	16	1.0	5	10.2	90	For Pipes
5C16-R1	5	16	1.0	5	10.2	90	For Pipes
3.5C32-R2	3.5	32	1.32	6	25	90	For Pipes
5C32-R2	5	32	1.32	6	25	90	For Pipes
3.5C64-R2	3.5	64	1.65	6	50	121	For Pipes
5C64-R2	5	64	1.65	6	50	121	For Pipes

3.Probe-wedge Integration Series

Model	Freq. (MHz)	E-Nos	Pitch (mm)	Elev. (mm)	R (mm)	ANGL.RNG	Desc/PUP
2L8-A1	2	8	1.0	8	9	58°SW	Conventional
4L8-A1	4	16	0.5	8	9	58°SW	Conventional
2.25L16-A1	2.25	16	0.75	12	12	45°SW	Conventional
2.25L16-A1	2.25	16	0.75	12	12	45°LW	Conventional
5L16-A1	5	16	0.6	9.6	10	45°SW	Conventional
5L16-A1	5	16	0.6	9.6	10	45°LW	Conventional

4.Matrix Series

Model	Freq.(MHz)	E-Nos	Pitch(mm)	A.APTR(X mm)	A.APTR(Y mm)	Desc/PUP
5M4X4-1.0X1.0-C1	5	16	1.0	4	4	3D Scan
5M8X4-1.0X1.0-C2	5	32	1.0	8	4	3D Scan
10M4X4-1.0X1.0-C1	10	16	1.0	4	4	3D Scan
10M8X4-1.0X1.0-C2	10	32	1.0	8	4	3D Scan

5.Wheel Probe

Model	Freq. (MHz)	E-Nos	Pitch (mm)	A.APTR (mm)	Elev. (mm)	Desc/PUP
5L64-G1	5	64	1.0	64	10	Larger C Scan

II Wedges

1. Linear Array Series

Model	Casing Mo.	Stl.Rfr-Angl	Rmd Scan Rng.	Ptd. Angl.
SC1-N0L	C1	0°LW	-30°～30°	0°
SC1-N45L	C1	45°LW	30°～60°	16°
SC1-N60L	C1	60°LW	45°～70°	20°
SC1-N70L	C1	70°LW	50°～80°	22°
SC1-N45S	C1	45°SW	30°～60°	31°
SC1-N55S	C1	55°SW	30°～70°	36°
SC1-N60S	C1	60°SW	45°～70°	39°
SC1-N70S	C1	70°SW	50°～80°	43°
SC2-N0L	C2	0°LW	-30°～30°	0°
SC2-N45L	C2	45°LW	30°～60°	16°
SC2-N60L	C2	60°LW	45°～70°	20°
SC2-N70L	C2	70°LW	50°～80°	22°
SC2-N45S	C2	45°SW	30°～60°	31°
SC2-N55S	C2	55°SW	30°～70°	36°
SC2-N60S	C2	60°SW	45°～70°	39°
SC2-N70S	C2	70°SW	50°～80°	43°
SC3-N0L	C3	0°LW	-30°～30°	0°
SC3-N45L	C3	45°LW	30°～60°	16°
SC3-N60L	C3	60°LW	45°～70°	20°
SC3-N70L	C3	70°LW	50°～80°	22°
SC3-N45S	C3	45°SW	30°～60°	31°
SC3-N55S	C3	55°SW	30°～70°	36°
SC3-N60S	C3	60°SW	45°～70°	39°
SC3-N70S	C3	70°SW	50°～80°	43°
SC4-N0L	C4	0°LW	-30°～30°	0°
SC4-N45L	C4	45°LW	30°～60°	16°
SC4-N60L	C4	60°LW	45°～70°	20°
SC4-N70L	C4	70°LW	50°～80°	22°
SC4-N45S	C4	45°SW	30°～60°	31°
SC4-N55S	C4	55°SW	30°～70°	36°
SC4-N60S	C4	60°SW	45°～70°	39°
SC4-N70S	C4	70°SW	50°～80°	43°
SC5-N0L	C5	0°LW	-30°～30°	0°
SC6-N0L	C6	0°LW	-30°～30°	0°
SC7-N0L	C7	0°LW	-30°～30°	0°
SC8-N0L	C8	0°LW	-30°～30°	0°
SC8-N45L	C8	45°LW	30°～60°	16°
SC8-N60L	C8	60°LW	45°～70°	20°
SC8-N70L	C8	70°LW	50°～80°	22°
SC8-N45S	C8	45°SW	30°～60°	31°
SC8-N55S	C8	55°SW	30°～70°	36°
SC8-N60S	C8	60°SW	45°～70°	39°
SC8-N70S	C8	70°SW	50°～80°	43°
SC9-N0L	C9	0°LW	-30°～30°	0°
SC9-N45L	C9	45°LW	30°～60°	16°
SC9-N60L	C9	60°LW	45°～70°	20°
SC9-N70L	C9	70°LW	50°～80°	22°
SC9-N45S	C9	45°SW	30°～60°	31°
SC9-N55S	C9	55°SW	30°～70°	36°
SC9-N60S	C9	60°SW	45°～70°	39°
SC9-N70S	C9	70°SW	50°～80°	43°

2.Matrix Series

Model	Casing Mo.	Stl.Rfr-Angl	Rmd Scan Rng.	Ptd. Angl.
SC1-N0L	C1	0°LW	-30°～30°	0°
SC2-N0L	C2	0°LW	-30°～30°	0°
